Q6 Edge HD
This 4mph powerchair is engineered to meet the performance needs of the most active user
Available on
Features
- Mid-Wheel 6® allows six wheels on the ground for maximum stability
- Low impact OMNI-Casters (nylon, spherical-shaped casters) on front and rear prevent wheel hang-ups
- iLevel® option available with up to 10” of seat elevation at walking speed (up to 3.5 mph)
- ATX Suspension (Active-Trac® with extra stability) incorporates front OMNI-Casters and semi-independent rear casters beam for enhanced performance over more vaired terrain
| Weight Capacity 4 | 35 stone 10 lbs. (227 kg) with TRU-Balance® Bariatric Tilt/ Synergy Seat 32 stone 2 lbs. (204 kg) with TRU-Balance® 3 HD Power Tilt 32 stone 10 lbs. (204 kg) 28 stone 8 lbs. (181 kg) with TRU-Balance® 10-inch Power Adjustable Heavy Duty Lift |
| Maximum Speed 1 | Up to 4 mph |
| Ground Clearance 2 | 89 mm (3.5”) at motor 76.2 mm (3”) at base frame 63.5 mm (2.5”) at caster pivot |
| Turning Radius 2 | 502 mm (19.75”) |
| Overall Size 2,6 | Length: 1247.5 mm (49.1”) with front rigging 904.2 mm (35.6”) without front riggings Width: 666.8 mm (26.25”) |
| Drive Wheels | 355.6 mm (14”) pneumatic or solid available |
| Caster Wheels | Front: 152.4mm (6”) Rear: 152.4 mm (6”) |
| Suspension | ATX Suspension (Active-Trac® with extra stability) |
| Component Weights 5,7 | Base: 143.5 lbs (65 kg) Batteries: 52 lbs (23.6 kg) each |
| Drivetrain | Two motor, Mid-wheel 6® drive |
| Brakes | “Intelligent Braking” electronic regenerative, disc park brak |
| Batteries 3 | Two 12-volt, deep-cycle 73 Ah (standard) |
| Battery Charger | 8-amp, Off-board |
| Maximum Obstacle Climbing Ability | 88.9 mm (3.5”) |
- Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.
- Without front riggings
- Battery capacity may change when adding power positioning systems.
- Weight capacity is dictated by the selection of seating.
- All measurements +/- 1/8” with 18” x 18” seat, fixed towers, 21 stone 6 lbs. weight capacity and solid tires (add 3/8” with pneumatic tires). Widths may increase seat-to-floor height. Contact Customer Service for details.
- Listed measurements are in the lowest position; does not include elevating system unless specified.
- Maximum dimensions of the Manual Recline vary by power base and seating system. Call for details.
- Battery weight may vary +/- 3 lbs. based on manufacturer.
- All Quantum Rehab® units can be ordered with specialty controls.
- Call for availability
| Synergy®/Static Sea | Width: 20-32″ Depth: 20-28″ |
| TRU-Balance® 3 Power Tilt | Width: 20-32″ Depth: 20-25″ |
| TRU-Balance® 3 HD Lift & Tilt | Width: 20-24″ Depth: 20-25″ |
| Synergy®/Static Seat 6 | 16.5-18.5” |
| TRU-Balance® 3 Power Tilt 6 | 18.5-20.5” |
| TRU-Balance® 3 Tilt & iLevel® 6 | 18.5-20.5” |
Quantum Q6 Edge HD 4mph Powerchair
With features like standard 4-pole motors, mid-wheel 6 drive design and ATX Suspension, the Q6 Edge HD is engineered to meet the performance needs of the most active user. Available with both TRU-Balance 3 Seating System and Synergy Seating Systems.Optional Extras
We have a range of accessories and optional specialty equipment designed to make your powerchair more unique and custom to you and your needs

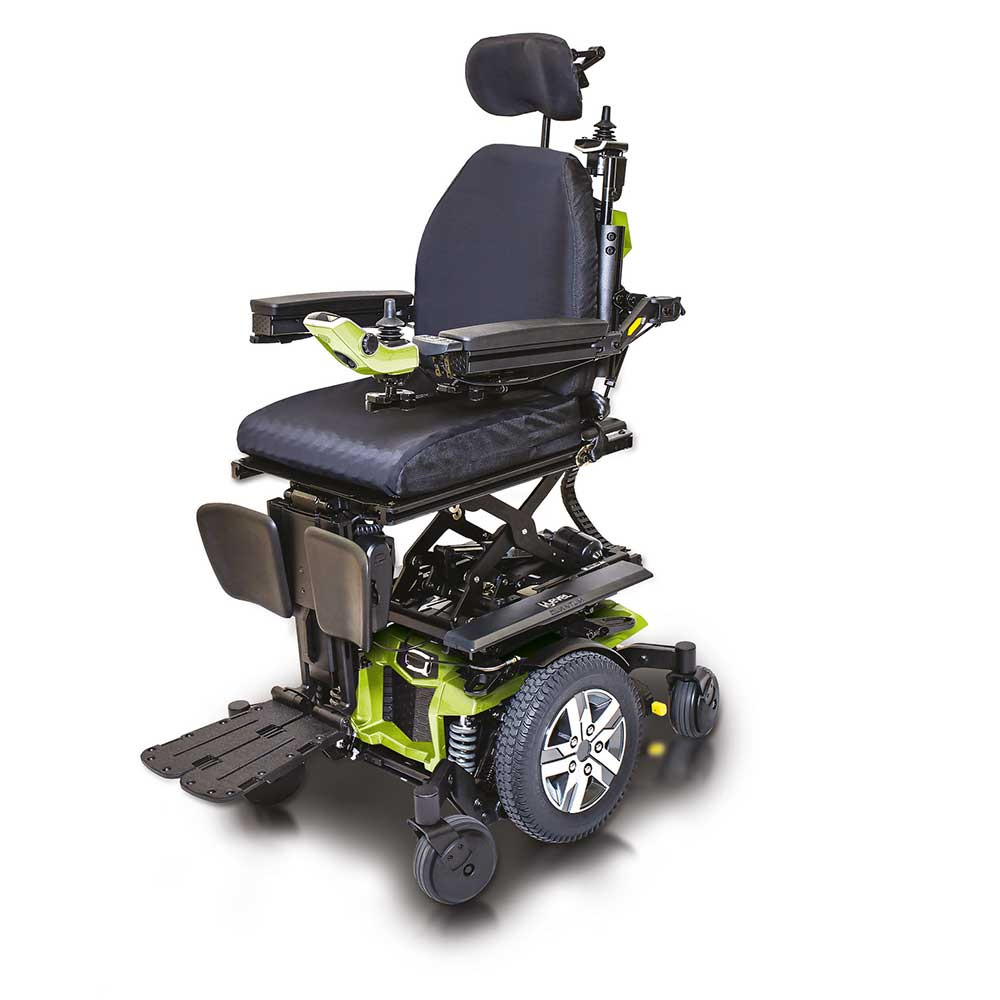

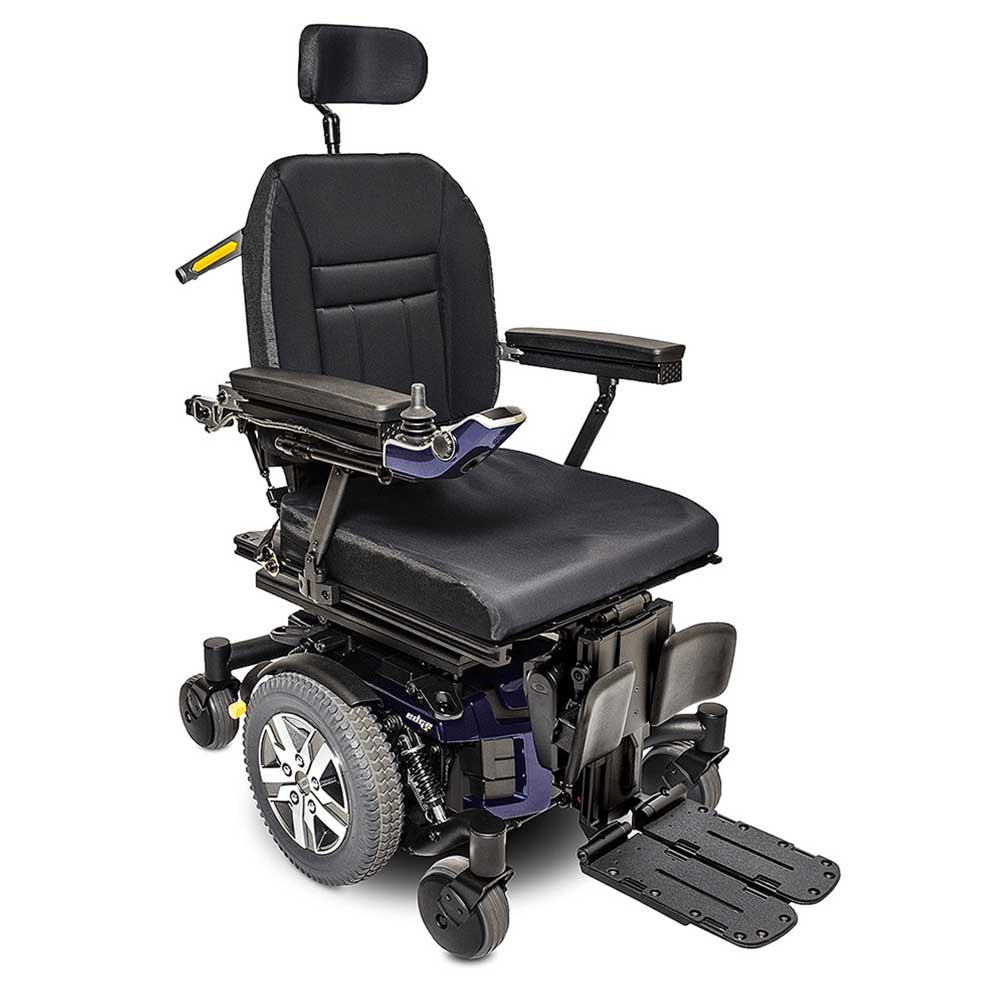

iLevel®
iLevel technology is designed to improve the daily functionality and quality of life. Ilevel allows the powerchair seat to be fully elevated while at walking speed (7.2 kmh/4.5mph) . iLevel’s patented Extra Stability Technology® enhances safety for transfers, reach, and numerous other activities of daily living. The Ilevel feature allows you to elevate and descend whilst on the move illimating the inconvenience of a stop start journey.
TRU-Balance 3
TRU-Balance 3 Power Positioning Systems feature an innovative design that maximises functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning. Available configurations include power tilt, power recline, power articulating foot platform, and static seating.
Synergy Seating
The Synergy Seating System offers a clean, streamlined appearance and unparalleled ease of adjustment. The seating system’s unique user-friendly design allows for adjustments to be made quickly and easily in the field.
Complete Protection
Support your independence with complete confidence that you can stay mobile with our Powerchair Insurance and protect against mechanical & electrical breakdown.
